Chip Conveyor for CNC Machine: Heavy-Duty Scrap Solutions
Released on Aug. 07, 2026
Heavy metal cutting generates huge amounts of sharp, hot metal waste every single minute. In high-volume machining shops, scrap buildup quickly turns into a serious production bottleneck.
Accumulated chips cause severe machine downtime, accelerate tool wear, and contaminate expensive cutting fluids. They also create hazardous working conditions for machine operators who clear metal waste manually.
Installing a heavy-duty chip conveyor for CNC machine operations solves these production challenges immediately. An automated conveyor keeps your machine enclosure clean and guarantees smooth, continuous metal removal.
At QianSen, we design and manufacture industrial-grade scrap management systems built for tough factory environments. Backed by more than 20 years of engineering expertise, QianSen delivers reliable waste handling solutions for metalworking facilities worldwide.
Why Heavy-Duty Scrap Management Matters for Modern CNC Operations
Modern machine shops cannot afford unmonitored scrap accumulation. High-speed spindles and heavy depth-of-cut programs generate heavy piles of turnings that demand continuous clearing.
An automated chip conveyor for CNC machine setups directly impacts your shop floor profitability. Here is how modern scrap management improves your daily operations:
Maximized Machine Uptime: Automated chip removal allows your turning and milling centers to run non-stop, supporting 24/7 lights-out manufacturing.
Extended Tool and Equipment Life: Clearing hot metal swarf away from linear guides, ball screws, and spindles prevents costly physical damage and wear.
Effective Coolant Recovery: Integrated filtration drains cutting fluid back into the sump, cutting raw fluid replacement costs significantly.
Sustainable Factory Standards: Efficient waste extraction prepares metal turnings for briquetting and recycling, supporting green, low-carbon manufacturing initiatives.
QianSen scrap systems align with global carbon-reduction goals. Our engineering team designs energy-efficient drive systems that minimize power consumption while handling high material loads.
QianSen Heavy-Duty Chip Conveyor Series: Tailored for Every Scrap Challenge
No single conveyor design can handle every metal type or chip geometry. QianSen manufactures a complete family of conveyors engineered for specific material characteristics and scrap volumes.
1. Hinged Belt Chip Conveyors
Hinged belt systems represent the most versatile choice for general machine shop applications. They excel at moving long, curly steel turnings, heavy bushy scrap, and coarse cast iron chunks.
QianSen constructs hinged belts using reinforced carbon steel and alloy plates. Our heavy-duty side chains and precision sprockets prevent material jamming, even under extreme shock loads.
Handles long, stringy steel turnings and heavy brass chips.
Features impact-resistant cleat designs for smooth material elevation.
Includes overload protection devices to safeguard the main gear motor.
2. Magnetic Chip Conveyors
Magnetic conveyors are the ideal choice for ferrous metal processing. They easily convey small cast iron chips, broken steel needles, and fine magnetic sludges.
Because the magnetic mechanism operates entirely inside a sealed stainless steel housing, the moving parts never touch abrasive metal chips. This design guarantees an exceptionally long service life with low maintenance requirements.
Perfect for cast iron milling, hardened steel grinding, and fine drilling waste.
Zero external moving parts to minimize component wear and tear.
Enclosed casing prevents cutting fluid leakage and maintains a clean floor.
3. Scraper & Screw Type Conveyors
Scraper conveyors utilize durable crossbars attached to drive chains to scrape small non-ferrous chips along the bottom of the trough. They work exceptionally well for aluminum, brass, and short bronze chips.
Screw conveyors (also known as auger conveyors) feature a compact footprint. Engineers often install them directly inside narrow CNC machine bases where space is extremely limited.
Scraper units deliver outstanding solid-liquid separation for wet aluminum chips.
Screw units offer a simple, space-saving design for light-to-medium chip loads.
Ideal for tight machine enclosures and multi-axis machining centers.
The QianSen Advantage: World-Class Engineering & Manufacturing Quality
Choosing the right equipment partner is just as important as selecting the right conveyor model. QianSen stands out in the scrap handling industry through raw manufacturing power and advanced technological design.
We blend advanced engineering principles from the United States, Germany, and Japan with continuous in-house innovation. This international tech integration ensures that every QianSen chip conveyor for CNC machine lines delivers long service life under aggressive operating conditions.

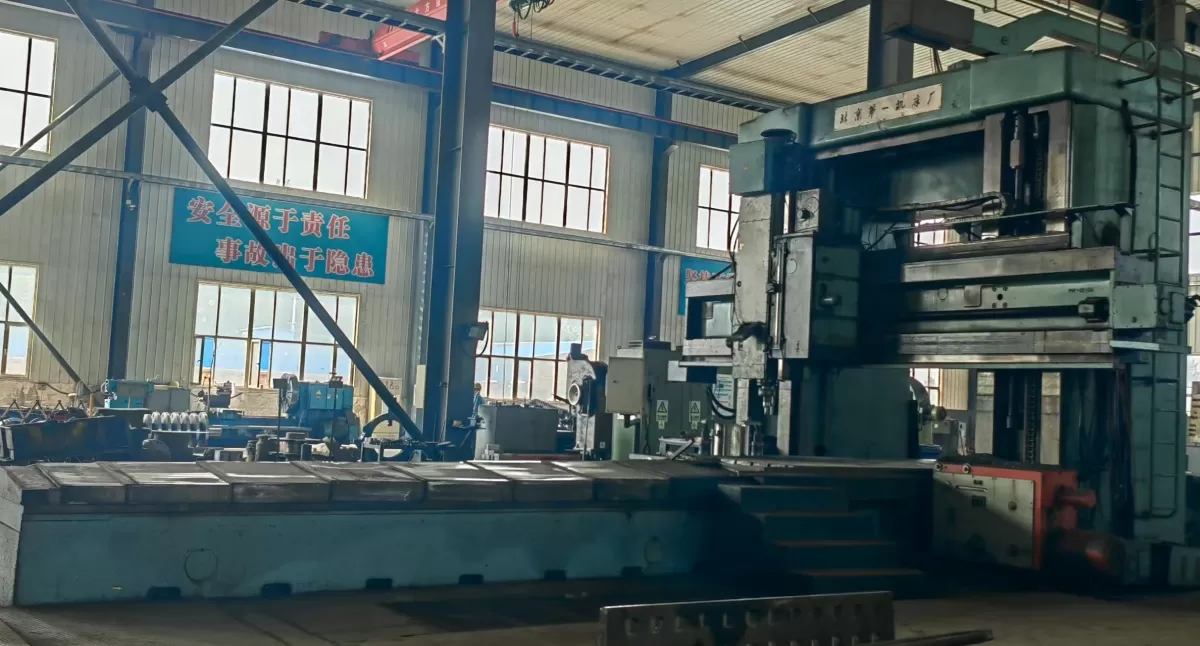

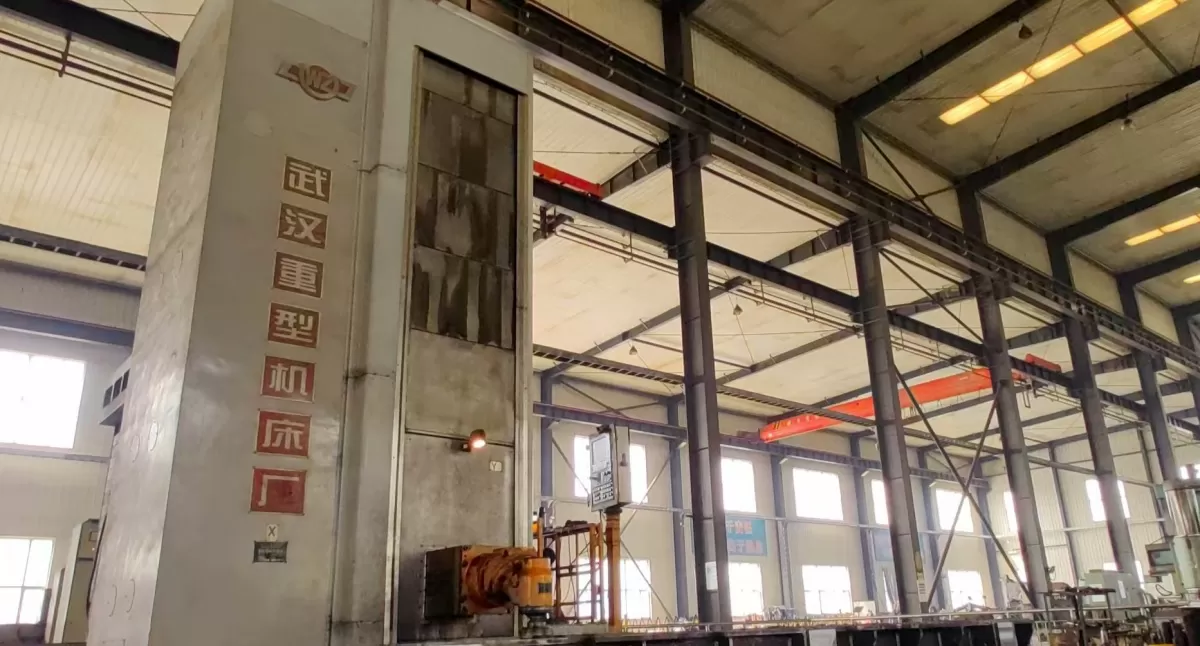

Our core manufacturing capabilities feature over 100 sets of high-precision equipment, including:
Large-scale fiber laser cutting machines for clean plate fabrication.
Heavy CNC press brakes and precision bending machinery.
Automated robotic welding stations that ensure strong, leak-proof seams.
Dedicated testing benches that verify mechanical load performance before shipment.
By controlling 100% of our production process in-house, QianSen guarantees strict quality control at every stage. We build every machine to exceed industry standards for durability and operational efficiency.
Key Factors to Consider When Selecting a CNC Chip Conveyor
Selecting the wrong conveyor can lead to frequent mechanical jams, fluid leaks, and unexpected downtime. Consider these essential technical factors before placing your equipment order:
Material Type and Scrap Shape: Identify whether your process generates long stringy steel coils, short powdery cast iron, or sticky aluminum clusters.
Scrap Volume Demands: Calculate peak metal removal rates (kg/hr or lbs/hr) to select the correct belt width, pitch size, and motor power.
Coolant Management Needs: Determine if your shop needs fine coolant filtration (down to 30–50 microns) integrated directly into the conveyor tank.
Machine Footprint & Discharge Height: Verify the internal dimensions of your CNC machine tray, output chute location, and preferred collection bin height.
The QianSen engineering team provides custom design services to tailor conveyor dimensions, tank capacities, and discharge heights to your exact factory floor requirements.
Frequently Asked Questions (FAQ)
Q1: What is the main benefit of installing a dedicated chip conveyor for CNC machine setups?
A1: A dedicated conveyor automates metal waste removal, eliminating manual cleanouts and reducing machine downtime. It also improves coolant recovery, protects internal machine components from physical damage, and maintains a safe working environment.
Q2: How do I choose between a hinged belt and a magnetic chip conveyor?
A2: Choose a hinged belt conveyor for long, stringy, curly, or non-ferrous chips like aluminum and stainless steel. Choose a magnetic conveyor for small, broken ferrous chips, cast iron dust, and fine steel swarf that can easily jam mechanical belts.
Q3: Can QianSen customize a chip conveyor to fit my specific CNC machine model?
A3: Yes. QianSen specializes in custom engineering. We build scrap conveyors tailored to fit specific machine brands, custom discharge heights, integrated coolant tanks, and unique shop floor space constraints.
Q4: How does QianSen ensure long-term durability under heavy scrap loads?
A4: We manufacture our equipment in-house using over 100 sets of advanced precision machines. We use wear-resistant alloy steels, heavy-duty drive chains, reinforced frame structures, and high-torque gear motors engineered for industrial duty cycles.
Q5: What maintenance does a typical CNC chip conveyor require?
A5: Routine maintenance involves checking drive chain tension, inspecting drive belts for wear, clearing settled sludge from coolant tanks, and lubricating drive bearings according to the operational manual.
Streamline Your CNC Production with QianSen Scrap Solutions
Upgrading your scrap handling system is a direct investment in plant efficiency, operator safety, and machine profitability. A reliable chip conveyor for CNC machine tools transforms waste management from a daily maintenance headache into a streamlined, hands-free operation.
With 20+ years of manufacturing experience, advanced US/DE/JP technology integration, and complete control over our manufacturing process, QianSen delivers dependable industrial equipment designed for high-stress production environments.
Ready to eliminate machine downtime and optimize your shop floor scrap collection?
